When is a FIAT not a FIAT any more?
Probably when you do this... but I like to think of it as a refinement...

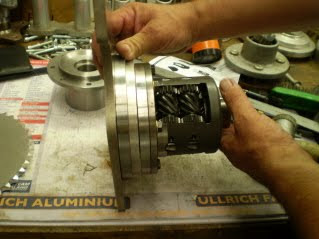

So here we go again - we have the diff rotating now - thanks to the RHS bearing block and eccentric being machined. The Pictures below are of teh second dummy assembly - not much to do now - bushings and oil seals, diff "muff" , and shim spacers plus some bolt holes and a pinch bolt on each side. But most importans you now get to see the drive side more or less how it should look. I ended up using the evo 1 lower mounting cradle as a spacer in teh dummy assembly hence the odd bits of tube getting in to shot.
For those who havent twigged yet - thats not a Fiat engine in there ..... and last I checked the other two 128s I raced never had this drive arrangement :-)
Still you should have a good idea by now this is a Yamaha powered Fiat hybrid running chain drive and 6 speed sequential gears and about 155 bhp in a package that weighs in at under 80kgs with the same tourque as my old 1300 FAZA 128 - but in a car weighing 300kg LESS. I havent cut the car and a good 1600 SOHC iron block fiat and 4 speed can be dropped back in the whole in an afternoon and be running by morning a few hours later.....
The precsion maching and welding on this engine install is the work of Graeme Sutton - with me in support doing the time consuming roughing out and drilling/tapping/fabrication tube notching layout stuff - time consuming for me that is!
Neat little package eh!
So there you have it - full exploded view next time - plus throttle cable and pedal and either wiring or headers....
